 Miele PCB EL001/2 repair

Home


Service available to all citizens of the Euro zone - Dienst verfügbar für alle Bürger der Euro Zone - Service disponible a tous les citoyens de la zone Euro




Do you recognize this situation?

bullet

your Miele washing machine with one of the typenumbers below is between 16 - 22 years old,

bullet

from one day to another, your machine refuses any service and none of the lamps indicate any life
 - or -

bullet

only some parts keep working (water inlet, pump etc.), while others don't (heating, washing).



Then, it's almost for sure that the main PCB broke down

If you are used to close the door after finishing the laundry, a small,current keeps flowing through the transformer.

After a while, this ruins the transformer.

Either the primairy, or the secundairy coil breaks down.

If the first occurs, the machine stops working at all, in the second case, only some functions have been disabled.
This is a known fault with this type pcb.

Among other things, the EL001 controls the RPM of the motor.

In Europe only, thousands of washing machines are wasted premature.

This is bad for your wallet and bad for our environment.

When you follow the procedure below, you realise that it may not be nessecary yet to buy a new machine.



Which types are involved?*

Miele washing machines having one of the following typenumbers:

W713, W715, W718, W720*,

W722, W729*, W732,

W738, W792, W795, W796,

W905, W7049



*check also variations



All models: Hydromatic, Novotronic etc.



PCB numbers:

EL001/2



(a.o. Miele part numbers: T.nr. 2627220, 2627221, 2627222)



*We also support EDSTU201, EDSTU201A, EDSTU202, EDSU101, EDSU102, EDRU001, EDRU001/A

  for  not mentioned (series 700-) types MIELE washing machines.



Attention!: To my regret I cannot support the following types:

W733, W750,

W751, W754, W755,

W756, W757, W765





Options



1

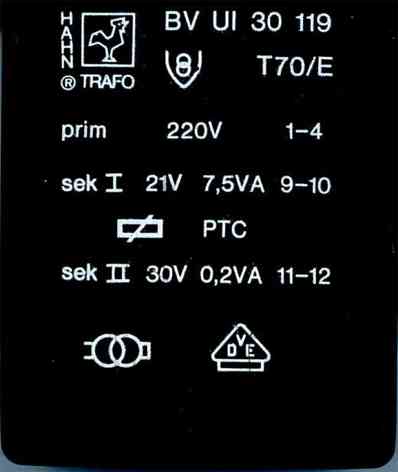

Original transformer Hahn BV UI 30 119 T70/E new!*

€  45,00

2

Used but revised and tested EL001/2 (new transformer) with exchange**

€  58,00

3

Used but revised and tested EL001/2 (new transformer) w/o exchange

€  98,00

4Examination and testing (without repair)€  22,00


Shipping to all mail adresses in the Euro zone***

€  13,00

*I do not support customers in dismounting and mounting of the transformer on this board. Due to the multilayer construction of this pcb, this can only succesfully be accomplished by a skilled and experienced technicien. If you choose to perform this operation yourself, you do this at your own risk and therefore I cannot guarantee success. I do not take back transformers once they have been mounted.

**  only if your board is not damaged beyond repair

*** including Track&Trace service



Benefits

bullet

What lies within your capabilities, you can do it yourself

bullet

Extremely rapid service (see Feedback)

bullet

Your machine will last for many years



Where to find the typenumber and how to dismount the PCB?

bullet

Remove the mains plug from the wall outlet

bullet

Open the frontpanel (bolts in the dooropening, screws behind soap reservoir)

bullet

Board is mounted against backside of frontpanel, behind the door (see picture)

bullet

The typenumber is on the housing of the pcb

bullet

You may cut the straps with which the cable bundle is attached (new ones come with the repaired unit)

bullet

Unscrew the complete unit (leave the board in the plastic cover!).



What's the procedure?

bullet

You send me an e-mail (see below) with a reference to your machine type (W...) and your adress

bullet

In this e-mail you find a link to our adress and payment information

bullet

Tell us your chosen option in this e-mail

bullet

Send your module (see picture) in a suitable package to the adress given (only option 3)

bullet

You transfer the appropriate amount (don't forget the shipping costs) to our account

bullet

At the latest within one week (hollidays excluded), you receive the articel that you requested for


Warranty

bullet

1 Year.

bullet

Not satisfied: free replacement or money back





Also replacement of transformer and other repairs of modules:



PCB

Miele washing machine model

EDRU001W1069,W697,W698,W699,W700,W701,W711,W726,W729,W770,W796
EDSTU201

W701,W704,W709,W710,W716,W717,W719,W720,W723,W724,W726,W731,W732,

W788,W791,W796,WT745,WT795

EDSTU202W694,W705,W791,W792,W793,W794
EDSU101W719,W720,W723,W724,W726
EDSU102W701,W704,W705,W709,W710,W711,W716,W719,W720,W726,W731
EL001W712,W713,W715,W718,W720,W729,W732,W738,W790,W792,W795,W796,W799,W905
EL101W1918,W5425,W9059,W913,W914,W916,W917,W918,W921,W925,W933
EL110

W110,W700,W800,W801,W805,W811,W8115,W820,W825,W830,W8314,W832,W833,W901,

W908,W909,W911,W915,W929,W908

EL140Aalleen -A model: W934,W937,W984

EL150

A,B,C,D

W149,W155,W2572,W2573,W2577,W2584,W2585,W2586,W2587,W2833,W2835,W2852,W2863,W2833,W300,W3160,

W3345,W3460,W351,W352,W353,W3545,W355,W357,W3574,W3575,W360,W361,W3616,W362,W363,W367,W370,

W373,W374,W375,W376,W377,W381,W383,W387,W430S,W432S,W433S,W435S,W437S,W439S,W440S,W441S,

W442S,W443S,W444S,W445S,W447S,W449S,W450S,W451S,W452S,W453S,W455S,W457S,W459S,W460S,W461S,

W463S,W467S,W470S,W471S,W473S,W475S,W476S,W477S,W479S,W980,W985,W986,W987,W989

EL200

B,C,D

W2866,W8120,W835,W837,W838,W842,W843,W844,W852,W853,W8535,W857,W859,W873,

W9140,W9345,W963,W9645,W974

ELP152 -A

W2515, W2553, W3831, W3838, W5245, W5260, W5660, V5760 WPS, V5760 Meteor,

EDPL

W15XX, W16XX, W17XX, W18XX, W19XX, W21XX, W22XX, W23XX, W24XX, W25XX, W31XX, W32XX, W34XX, W35XX

Electrolux

EDC46130W, EDC66130W, EDC66150W, EDC67150W, EDC67550W, EDC67555W, EDC77570W, EDI96150W

AEG

6130W, 6150W, 7150W, 7550W, 7555W, 7570W, T55400, T55403, T55405, T55500, T55540, T55542, T55543, T55544, T55545, T55580, T55600, T55610, T55640, T55800, T55840, T56600, T56640, T56740, T56800, T56830, T56840, T568DIA, T57630, T57800, T57808, T57830, T57848, T57900, T58840, T59820, T59850, T59860, T59880, T88800, T88840, TMARATHON

Zanussi

TC7114, TCE7114, TCE7224, ZTE170, ZTE220, ZTE240, ZTE260, ZTE265, ZTE270, ZTE272, ZTE273, ZTE275, ZTE277, ZTE280, ZTE285, ZTE286, ZTE289, ZTH485, ZTK120





In some models (i.e. W729), you may find different PCB's



Attention: NO support for models:

W733, W734, W735, W736, W737, W738, W750, W751, W753, W754, W755, W756,W757, W758,

W759, W760, W761, W763, W765, W770, W772, W780, W782, W783, W784, W793, WT489, WT490
