 Miele electronic EL200


Home
Foto's





Your Miele broke down?

Thousands of Miele washing machines are prematurely replaced on a yearly basis.

Bad for your wallet and for the environment.

Reed further to discover that it may not be necessary at all to replace you washing machine.



Does any of the following situations apply?

bullet

Drum doesn't spin, rinse light flashes,

bullet

Drum doesn't spin, three dashes in display,

bullet

Drum turns only one way,

bullet

Drum hesitates while trying to spin,

bullet

Machine dead, no sign of life, no lights



See YouTube movie.



Different causes

Miele with an EL200 electronic, generally are very reliable.

There's only one flaw: the electronic is extremely sensitive to imbalance.

In a well functioning machine, imbalance will only occur under too heavy load.

Miele developed a special process which consists of a sequence of rotations that vary in direction and speed.

This process guarantees that the laundry is evenly distributed around the outskirts of the drum before the spinning really starts.

The outcome of this process however relies heavily on the condition of the shock absorbers.

In models with an EL200 electronic, the change in direction happens almost instantly. This is why the process is so easily disturbed when the shocks are worn. As a consequence a 5 Kg. machine will eventually not be able to handle more than 3 Kg. of laundry without severe imbalance.

New shocks have a damping effect of 120 Newton.

After ten years of operating there's only little left without showing any signs of it on the outside.

Signs like trembling while spinning often are ignored, because they are assumed to be a consequence of the age.

If the imbalance is too severe, eventually the electronic will be damaged.



On account of this, we cannot grant warranty on repairs of EL200 electronics, if you don't exchange the shock absorbers.

Below you will find instructions for exchanging the shocks yourself easily.





What about the brushes?

If your machine has problems with rinsing and spindling, the motor function is disturbed.

Apart from the above mentioned causes, you might consider the following:

bullet

Worn carbon brushes, look here. Miele carbon brushes are extremely long lasting. Unless intensively used, they may last as long as 20 years.

bullet

Cable cut or bad contact. In older models this occurred sometimes. We do not know this fault from machines with an EL200 PCB.



Repair advice

Of course you might consider calling a Miele technician.

He almost certain will propose a new PCB. Because of the age of the machine, you'll have to pay the full retail price (at least 250 pounds).



You also might call your local technician. He will charge you less for the visit. The price for the PCB however will be the same.

Many local technicians already have found their way to our service. These technicians will propose replacement by a PCB that has been overhauled by us instead of a new one.

Ask for warranty conditions. Technicians which use our service, are allowed to give a full year warranty on the cost of repair of the PCB.



Last but not least, you might consider sending the PCB to us for repair.

You ship the PCB to us and transfer cost for repair and shipping, and as advised, the amount for a new set of shock absorbers (see warranty conditions below).

Your PCB generally will be fixed and returned the same day as it arrives at our office.



Models this may concern (amongst others)



E-NUMBER

FULL NAME

E-NUMBER

FULL NAME

W827

MIELE W 827

W862

MIELE W 862

W828

MIELE W 828

W863

MIELE W 863

W829

MIELE W 829

W864

MIELE W 864

W835

MIELE W 835

W865

MIELE W 865

W837

MIELE W 837

W866

MIELE MONDIA 140 (BE)

W838

MIELE SENATOR 115 (DE)

W866

MIELE W 866

W838

MIELE W 838

W866

MIELE 2866 METEOR (BE)

W838

MIELE 1038 METEOR (DE)

W867

MIELE W 867

W838

MIELE SUPERIOR 1120 (DE)

W870

MIELE W 870

W838

MIELE MONDIA 1138 (DE)

W872

MIELE W 872

W838

MIELE ECONIC 1150 (DE)

W872

MIELE MONDIA 1872 (DE)

W838

MIELE BRILLANT 1180 (DE)

W872

MIELE 2872 METEOR (DE)

W838

MIELE EXQUISIT 1338 (DE)

W872

MIELE EXQUISIT 3872 (DE)

W838

MIELE W 8315 (NL)

W872

MIELE BRILLANT 4872 (DE)

W839

MIELE W 839

W873

MIELE W 873

W840

MIELE W 840

W875

MIELE W 875

W841

MIELE W 841 (BE)

W876

MIELE W 876

W842

MIELE SENATOR 120 (DE)

W876

MIELE MONDIA 1876 (DE)

W842

MIELE W 842

W876

MIELE EXQUISIT 3876 (DE)

W842

MIELE 1042 METEOR (DE)

W876

MIELE BRILLANT 4876 (DE)

W842

MIELE 1043 WPS METEOR (DE)

W877

MIELE W 877

W842

MIELE MONDIA 1142 (DE)

W877

MIELE 2877 METEOR (DE)

W842

MIELE BRILLANT 1200 (DE)

W960

MIELE GALA W 960

W842

MIELE ECONIC 1200 (DE)

W961

MIELE SENATOR 140 (DE)

W842

MIELE SUPERIOR 1220 (DE)

W961

MIELE GALA W 961 (DE)

W842

MIELE EXQUISIT 1342 (DE)

W961

MIELE W 961

W843

MIELE W 843

W961

MIELE 100 ANNIVERSARY W 961

W843

MIELE BRILLANT W 843 (NL)

W961

MIELE PRIMAVERA W 961 (DE)

W843

MIELE GALA W 843 (NL)

W961

MIELE MONDIA 1261 (DE)

W843

MIELE W 8120 (NL)

W961

MIELE ECONIC 1400 (DE)

W843

MIELE W 8712 (NL)

W961

MIELE SUPERIOR 1420 (DE)

W844

MIELE W 844

W961

MIELE EXQUISIT 1461 (DE)

W844

MIELE W 8125 (NL)

W961

MIELE GOLD 2000 (BE)

W845

MIELE W 845

W961

MIELE 2061 METEOR (DE)

W850

MIELE W 850

W963

MIELE W 963

W850

MIELE PRISMA W 850 (DE)

W963

MIELE W 9140 (NL)

W850

MIELE PRISMA W 850 (BE)

W963

MIELE W 9145 (NL)

W851

MIELE W 851

W963

MIELE W 9235 (NL)

W851

MIELE 1051 METEOR (DE)

W963

MIELE W 9345 (NL)

W851

MIELE SUPERIOR 1320 (DE)

W963

MIELE V 9545 METEOR (NL)

W851

MIELE EXQUISIT 1351 (DE)

W963

MIELE W 9645 WPS (NL)

W852

MIELE W 852

W963

MIELE V 9945 EXPERT (NL)

W853

MIELE W 853

W965

MIELE W 965

W853

MIELE BRILLANT W 853

W968

MIELE W 968

W853

MIELE V 8435 METEOR (NL)

W969

MIELE W 969

W853

MIELE W 8535 (NL)

W970

MIELE W 970

W853

MIELE V 8935 EXPERT (NL)

W971

MIELE W 971

W854

MIELE W 854

W971

MIELE MONDIA 1271 (DE)

W855

MIELE W 855

W971

MIELE EXQUISIT 1471 (DE)

W857

MIELE W 857

W971

MIELE BRILLANT 1550 (DE)

W859

MIELE W 859

W972

MIELE W 972

W861

MIELE MONDIA 110 (BE)

W973

MIELE W 973

W861

MIELE W 861

W973

MIELE 2073 METEOR (DE)



PCB's:

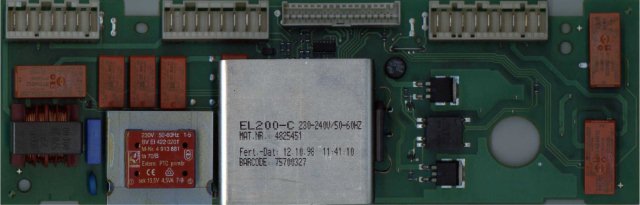

EL200-A, EL200-B, EL200-C, EL200-D





Prices (valid from January 1st, 2017)



Prices include 21% VAT and include a one year warranty (unless otherwise stated).



1

Repair EL200-A, EL200-B, EL200-C, EL200-D

  55,00
2

Shock absorbers Suspa 120N

  32,00


Shipping, porto**

  13,00


** Countries: A, B, D, DK, E, F, S, UK 13,00. Other European countries: Ask!

Your benefits

bullet

Professional repairs

bullet

Low prices

bullet

What you can do yourself, you do it yourself

bullet

Very fast returns (see Feedback)

bullet

Your fine machine will last for many years to come



How to locate your model number?

bullet

You will find it on the type plate behind the door.



Dismounting the PCB?



-  (frontloader, type 1)



bullet

Pull the mains plug,

bullet

Open the front panel (bolts around the fill opening, screws behind soap container),

bullet

PCB is mounted against back side of dashboard,

bullet

Pull of the small rubber hose through the hole in the EL200,

bullet

Disconnect all connectors from the EL200,

bullet

Release the clips at the lower side of the PCB.



How to replace the shock absorbers?

The shock absorbers have no suspension function, the only provide friction. The drum/tub combination hangs firmly in four robust steel springs. So you may safely remove the shock absorbers.





bullet

Pull the plug from the mains socket,

bullet

Open the front cover (3 bolts behind door, screws behind front of detergent container)

bullet

Loosen the two screws that secure the drain pump to the plinth (leave rubber hoses attached)

bullet

The right one is easiest to disassemble because you have more space there. So start with this one (wrench 13 and possibly another wrench 13 to prevent slipping of the bolt).

bullet

Loosen the nuts above and below, and remove the bolts.

bullet

You can now easily remove the shock absorber.

bullet

Adjust one of the new shock absorbers to approximately the same length as the old one.

bullet

Compare the friction between the old one and the second one of the new (and be satisfied that you decided to replace them)!

bullet

Now adjust the second one as well to the proper length.

bullet

Remove the left shock absorber. If the pump is in the way, it may now easily moved away by hand.

bullet

Assemble in reverse order.





How does it work?

bullet

Send us an e-mail via the this link

bullet

You receive all relevant data (address, bank account)

bullet

Ship the PCB to our address in the Netherlands

bullet

Transfer the amount (see Prices) on our account

bullet

Within a few days, you receice the PCB (and a new set of shock absorbers) back in full working order.

bullet

Inform us about your satisfaction ;-)



Warranty

bullet

1 year warranty,

bullet

in case of failure: free replacement or mony back,

bullet

In case of no defect, you only pay research costs ( 39,89 incl. shipping).





Other models supported:



PCB

Miele washing machine model

EDRU001W1069,W697,W698,W699,W700,W701,W711,W726,W729,W770,W796
EDSTU201

W701,W704,W709,W710,W716,W717,W719,W720,W723,W724,W726,W731,W732,

W788,W791,W796,WT745,WT795

EDSTU202W694,W705,W791,W792,W793,W794
EDSU101W719,W720,W723,W724,W726
EDSU102W701,W704,W705,W709,W710,W711,W716,W719,W720,W726,W731
EL001W712,W713,W715,W718,W720,W729,W732,W738,W790,W792,W795,W796,W799,W905
EL101W1918,W5425,W9059,W913,W914,W916,W917,W918,W921,W925,W933
EL110

W110,W700,W800,W801,W805,W811,W8115,W820,W825,W830,W8314,W832,W833,W901,

W908,W909,W911,W915,W929,W908

EL140Aalleen -A model: W934,W937,W984

EL150

A,B,C,D

W149,W155,W2572,W2573,W2577,W2584,W2585,W2586,W2587,W2833,W2835,W2852,W2863,W2833,W300,W3160,

W3345,W3460,W351,W352,W353,W3545,W355,W357,W3574,W3575,W360,W361,W3616,W362,W363,W367,W370,

W373,W374,W375,W376,W377,W381,W383,W387,W430S,W432S,W433S,W435S,W437S,W439S,W440S,W441S,

W442S,W443S,W444S,W445S,W447S,W449S,W450S,W451S,W452S,W453S,W455S,W457S,W459S,W460S,W461S,

W463S,W467S,W470S,W471S,W473S,W475S,W476S,W477S,W479S,W980,W985,W986,W987,W989

EL200

B,C,D

W2866,W8120,W835,W837,W838,W842,W843,W844,W852,W853,W8535,W857,W859,W873,

W9140,W9345,W963,W9645,W974

ELP152 -A

W2515, W2553, W3831, W3838, W5245, W5260, W5660, V5760 WPS, V5760 Meteor,

EDPL

W15XX, W16XX, W17XX, W18XX, W19XX, W21XX, W22XX, W23XX, W24XX, W25XX, W31XX, W32XX, W34XX, W35XX

Electrolux

EDC46130W, EDC66130W, EDC66150W, EDC67150W, EDC67550W, EDC67555W, EDC77570W, EDI96150W

AEG

6130W, 6150W, 7150W, 7550W, 7555W, 7570W, T55400, T55403, T55405, T55500, T55540, T55542, T55543, T55544, T55545, T55580, T55600, T55610, T55640, T55800, T55840, T56600, T56640, T56740, T56800, T56830, T56840, T568DIA, T57630, T57800, T57808, T57830, T57848, T57900, T58840, T59820, T59850, T59860, T59880, T88800, T88840, TMARATHON

Zanussi

TC7114, TCE7114, TCE7224, ZTE170, ZTE220, ZTE240, ZTE260, ZTE265, ZTE270, ZTE272, ZTE273, ZTE275, ZTE277, ZTE280, ZTE285, ZTE286, ZTE289, ZTH485, ZTK120

Attention: no support for:

W733, W750, W751, W754, W755, W756,W757, W765
